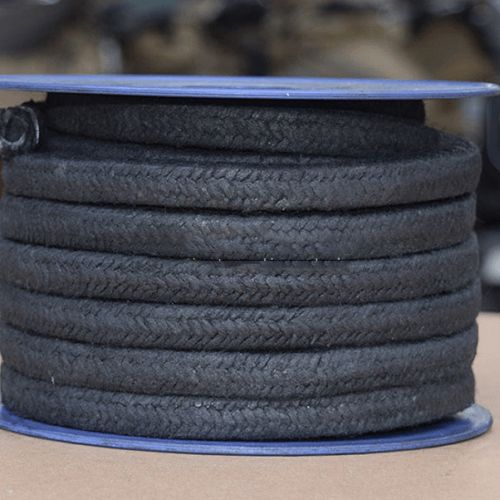

Cotton Fiber Yarn Packing Impregnated with Graphite

High quality Cotton Fiber Yarn Packing Impregnated with Graphite you can have from us. More information please contact us any time.

Send Inquiry

Product Description

Cotton Fiber Yarn Packing Impregnated with Graphite - Style 5145

Cotton fiber yarn packing impregnated with graphite is densely braided from cotton fiber yarns, and then impregnated with a blend of mineral lubricants and graphite. Special lubricants are added to the fibres during and after braiding. These preparations produce a thorough lubrication that will not readily migrate, leading to minimal shaft friction, wear and an extended packing life.

Application

Cotton fiber yarn packing impregnated with graphite is an universal packing, for Rotary,reciprocating pumps,in ship building and domestic fresh water pumps. And it is designed for hydraulic applications in low and medium pressure pumps and valves,and where contamination is not permitted.

Data Sheet

Temperature	-	Pressure Limit	-
Min Temp	- 50°C	Static	70 bar
Max Temp	100 °C	Rotating	10 bar
Density	1.2 g/cm3	Reciprocating	20 bar
Rotary Pump Speed	10 m/s	Ph Value	6 - 8
