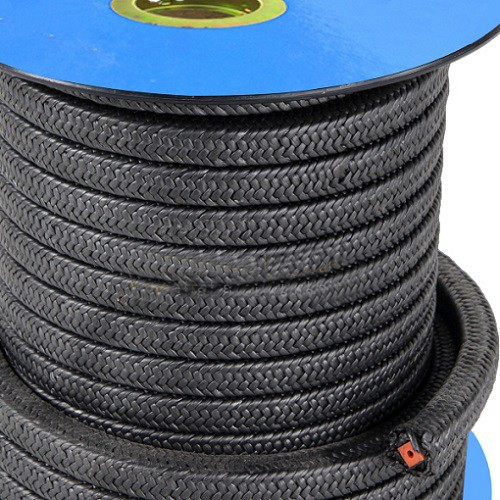

Graphite PTFE Packing with Hollow Silicone Rubber Core

Graphite PTFE Packing with Hollow Silicone Rubber Core is specifically designed to seal large rotating equipment like mixers and agitators

Send Inquiry

Product Description

Graphite PTFE Packing with Hollow Silicone Rubber Core - Style 2045

Graphite PTFE packing with hollow silicone rubber core is made from graphited PTFE Yarn and then with a core of specific grade hollow silicone rubber core, the silicone rubber core offers a combination of the highest chemical resistance and temperature ability and allows the packing to continually seal on pumps that are less than perfect mechanical condition. The outside braided yarn is a combination of graphite fluorocarbon and oil to promote the maximum sealing and wear resistance. This graphite PTFE packing with hollow silicone rubber core was especially designed for pumps where there is an axial or elliptical shaft run out.

Application of Graphite PTFE Packing with Hollow Silicone Rubber Core

Graphite PTFE packing with hollow silicone rubber is specifically designed to seal large rotating equipment like mixers and agitators. Testing has proven that a high quality braided packing with a silicone rubber core will outlast conventional packing in applications associated with excessive shaft deflection on large shafts. And graphite PTFE packing with hollow silicone rubber is used for pumps where there is an axial or elliptical shaft run out. Seals on pumps with less than perfect mechanical conditions. High pressure valve packing, worn pumps, or deflecting shafts. Valves, centrifugal pumps, rotary pumps, reciprocating pumps. Especially designed for large rotating equipment like mixers and agitators

Data Sheet

Temperature	-	Pressure Limit	-
Min Temp	- 150 °C	Static	150 bar
Max Temp	280 °C	Rotating	25 bar
Density	1.55 g/cm3	Reciprocating	100 bar
Rotary Pump Speed	19 m/s	Ph Value	0 - 14
