Kynol Novoloid Fiber Packing Impregnated with PTFE lubricant

High quality and good price Kynol Novoloid Fiber Packing Impregnated with PTFE lubricant made by us Ningbo Sunshine, Free Samples

Send Inquiry

Product Description

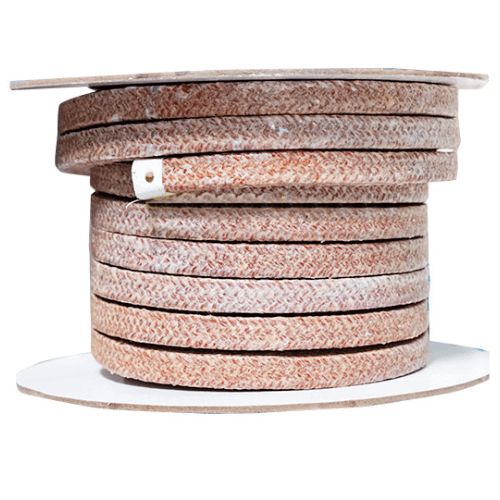

Kynol Novoloid Fiber Packing Impregnated with PTFE lubricant - Style 3074

Kynol Novoloid fiber packing impregnated with PTFE lubricant is produced in a interbraid cross section with proprietary Kynol Novoloid fiber yarn, composed of Phenolic and other high quality synthetic fibers. It is impregnated with PTFE and mineral lubricant. Kynol Novoloid fiber packing impregnated with PTFE lubricant is a new generation of heat resistant synthetic fibers compression gland packing. This Kynol Novoloid fiber has the same resistance than the aramid fiber but with the chemical inertness and the coefficient of friction similar to the PTFE. For best results each strand is previously lubricated with PTFE and with a special lubricant break-free silicone.

Application and Advantages of Kynol Novoloid Fiber Packing Impregnated with PTFE lubricant

Kynol Novoloid fiber packing impregnated with PTFE lubricant is recommended for use in processes with fluids containing suspended solids, where contamination from graphite cannot be tolerated. It can be utilized in pumps, agitators, and mixers in addition to rotating equipment and valves.

Kynol Novoloid fiber packing impregnated with PTFE lubricant has an excellent cost vs benefit ratio, and qualifies as one of the best options for pulp and paper, sugar and alcohol industries, all of which need a packing that is able to withstand granular and abrasive applications. It provides high durability and resistance to chemical attack without wearing out or damaging the shaft

Data Sheet

Temperature	-	Pressure Limit	-
Min Temp	- 200 °C	Static	200 bar
Max Temp	260 °C	Rotating	25 bar
Density	1.35 g/cm3	Reciprocating	110 bar
Rotary Pump Speed	20 m/s	Ph Value	2 - 12
