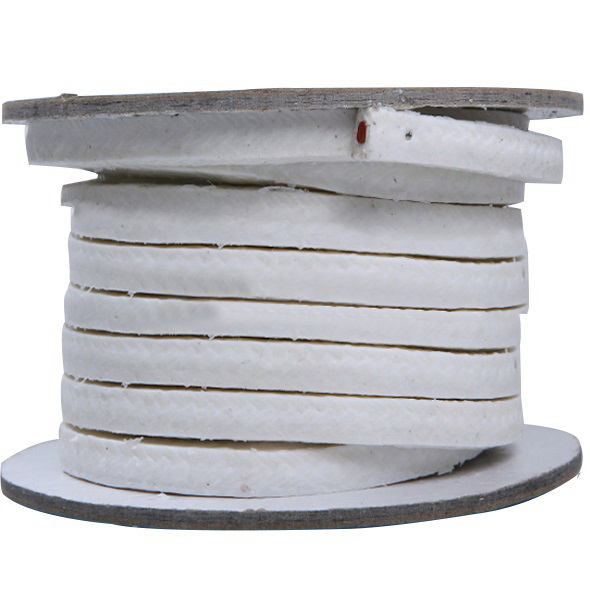

Nomex Yarn Packing with Silicone Rubber Core

The Meta-Aramid Nomex Yarn Packing with Silicone Rubber Core is not suitable for highly concentrated acids and caustics, alkali metals, oxygen.

Send Inquiry

Product Description

Nomex Yarn Packing with Silicone Rubber Core - Style 3035

Nomex yarn packing with silicone rubber core is made of Meta-Aramid nomex yarn with a silicone rubber core inserted. Nomex fiber yarn is white color, and the white Meta-aramid nomex packing is densely woven with aramid elastic synthetic fiber (NOMEX). And Nomex yarn packing with silicone rubber core is usually impregnated with PTFE and special lubricating additives. Compared with yellow aramid fiber, this style NOMEX fiber packing is wear-resistant but does not grind the shaft. And white Nomex aramid fiber packing is an ideal sealing stuffing box in the food industry.

Advantages

Nomex yarn packing with silicone rubber core adopts imported NOMEX fiber. That is, white meta-aramid nomex elastic synthetic fiber. It is densely woven. After being impregnated with PTFE and special lubricating additives, the characteristics of white aramid fiber are fully utilized. Superior section density and structural strength. The white aramid fiber has the characteristics of wear resistance. The PTFE emulsion and lubricant make the white aramid fiber more wear-resistant. The lubricating performance is greatly improved. But it does not grind the shaft.

Application areas:

Nomex yarn packing with silicone rubber core is a general-purpose packing, designed for special parts such as pumps, stirrers, mixers, refiners. And it is especially suitable for standardized industrial fields such as papermaking, sugar making, soda water system, power station, cooling water and river water adjustment, turbine oil circulation system, widely used in the pharmaceutical and food industries where pollution is not allowed, the white Nomex aramid packing is durable. It is easy to disassemble and install. It is also suitable for medium with small solid particles and easy to wear.

Data sheet

Temperature	-	Pressure Limit	-
Min Temp	- 100 °C	Static	100 bar
Max Temp	280 °C	Rotating	26 bar
Density	1.3 g/cm3	Reciprocating	50 bar
Rotary Pump Speed	19 m/s	Ph Value	2 - 12
