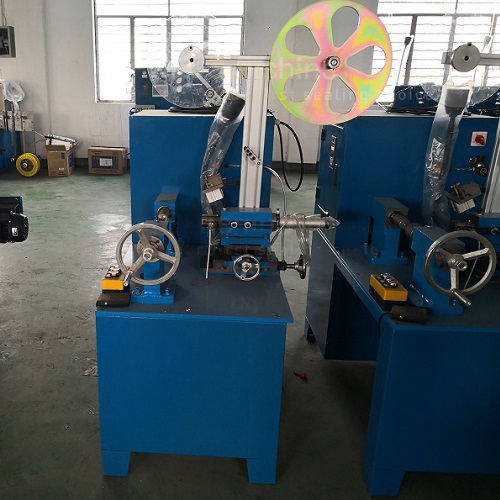

Small Size Spiral Wound Gasket Winding Machine

Small size spiral wound gasket winding machine can be used for making small size spiral wound gasket from 1/2'' to 14''

Send Inquiry

Product Description

Small Size Spiral Wound Gasket Winding Machine - WSG01

Small size spiral wound gasket winding machine is used for making spiral wound gasket diameter size from φ15 to φ300 mm. The pinch roller device adopts pneumatic pressure, large pressure adjustment range. And the small size spiral wound gasket winding machine is very easy to operae to make all kinds of spiral wound gaskets. The machine operation speed adopts infinitely variable speeds, which can adapt to the speed requirement for different gasket sizes.

Productions sizes of SWG gaskets

Thickness: 4.5 mm, also suitable for 2.5 mm, 3.2 mm, 6.4 mm and 7.2 mm after changing roller parts.
Steel tape: Standard V or W shape stainless steel strip

Technical Specification for SWG Machines

Description	Value	Unite
Operation Type	semi-automatic	-
Gasket thickness	3.2 or 4.5	mm
Min gasket inner ring	Φ 15	mm
Max gasket outer ring	Φ 300	mm
Tolerance of gasket	+/- 0.3	mm
Power	0.4	kw
Power voltage	220/380 as need	V
Net weight Max	240	kgs
Machine dimension	12892144	cm
