Style CG Spiral Wound Gasket

Product Description

What is Style CG Spiral Wound Gasket?

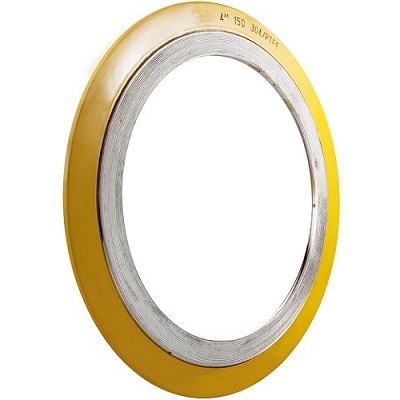

Style CG spiral wound gasket consists of a winding ring made of V-shape stainless steel strip tape and graphite or PTFE filler, then combined with an external outer ring. And the external outer ring of style CG spiral wound gasket accurately centers the gasket on flange faces, and provides radial strength to prevent gasket blowout and a compression stop. The outer ring is typically made from painted carbon steel, but other corrosion resistant materials are available like stainless steels and other higher temperature alloys. The CG spiral wound gasket is a good general purpose gasket and is suitable for use with flat face and also raised face flanges.

Style CG Spiral Wound Gasket Factory China

Typical Applications of Style CG Spiral Wound Gasket

Style CG spiral wound gasket is used in standard flanges, pump Flanges, Valve Flanges, Compressor Flanges, ASME 16.20 Flanges, ANSI B16.5 Flanges, ANSI BS 1650, Steam Service, Tongue and Groove Flanges, Heat Exchangers, Acid and Caustic Service, Gas Turbines, Refining, Chemical Processing, Plastics, Heat Transfer Fluids.

Style CG Spiral Wound Gasket Features and Benefits

Style CG Spiral Wound Gasket has standard sizes available for most flanges, outer centering ring of the style CG Spiral Wound Gasket centers gasket on the flange and provides a compression stop. It has the features of resiliency with fluctuations in temperature and pressure, ease of installation and it is relative low cost, general purpose gasket.

Materials of Style CG Spiral Wound Gasket

Windings available in: 304 SS, 316L SS, 321 SS, 347 SS, Inconel 600, Incoloy 800 or 825, Inconel X-750, Monel 400.
Winding for corrosive environments - Alloy 20, Hasteloy C-276, Monel 400.
Fillers available: Non-Asbestos, Flexible Graphite, Mica, Ceramic, PTFE, Non-sintered PTFE and High temperature Vermiculite 835 filler now available.
Outer Centering Rings available in: Painted Carbon Steel, 304 SS, 316L SS, 321 SS, 347 SS, Inconel 600, Incoloy 800 or 825, Inconel X-750, Monel 400.

How to Package Style CG Spiral Wound Gasket?

Spiral Wound Gaskets Package Types
To ensure that clients receive the highest quality of spiral wound gaskets, our spiral Wound Gaskets are packaged with the utmost care to prevent damage during shipping to customers.
1. Between 1/2'' to 24'' gaskets are packaged by plastic clips each 10 pcs.
2. Up to 24'' gaskets packaged by soft cotton tape each.
